Open-Cell Foam Tip Swabs
  • Open-Cell Foam Tip Swabs
  • Open-Cell Foam Tip Swabs
  • Open-Cell Foam Tip Swabs
  • Open-Cell Foam Tip Swabs
  • Open-Cell Foam Tip Swabs
  • Open-Cell Foam Tip Swabs
  • Open-Cell Foam Tip Swabs Suzhou Jujie Electron Co.,Ltd.
  • Open-Cell Foam Tip Swabs Suzhou Jujie Electron Co.,Ltd.
  • Open-Cell Foam Tip Swabs Suzhou Jujie Electron Co.,Ltd.
  • Open-Cell Foam Tip Swabs Suzhou Jujie Electron Co.,Ltd.
  • Open-Cell Foam Tip Swabs Suzhou Jujie Electron Co.,Ltd.
  • Open-Cell Foam Tip Swabs Suzhou Jujie Electron Co.,Ltd.

Open-Cell Foam Tip Swabs

Introduction

Highest quality Open-Cell foam tip swabs, Medium Handle with Flexible Tip foam swab designed for removal of contamination from surfaces in cleaning of tiny hard to reach area, features particle and entrapment and retention; enables access to very small areas and crevices. Especially in tiny places for removing flux and adhesive tape and excess dust engine oil contaminant and leave without dust and lint.

The foam is thermally bonded to the handle, thus, eliminating the use of contaminating adhesive or coatings. Laundered and packed under an Class 100 Cleanroom, The foam exhibits low particles and ion content. free from silicone, amide and DOP.

It has compatibility with solvents including acetone as well as absorbency and solvent-holding capacity that enables the swabs to resis corrosion during the cleaning, enabling fast absorption of contaminants onto the swab head.

CONTACT US
01Specification 02Application 03Inquiry

Specification

Head Material:

Foam

Handle Material:

Polypropylene

Head Length:

13.00mm

Head Width:

3.20mm

Head Thickness:

4.30mm

Handle Length:

68.80mm

Handle Width:

2.40mm

Handle Thickness:

2.40mm

Total Length:

70.00mm

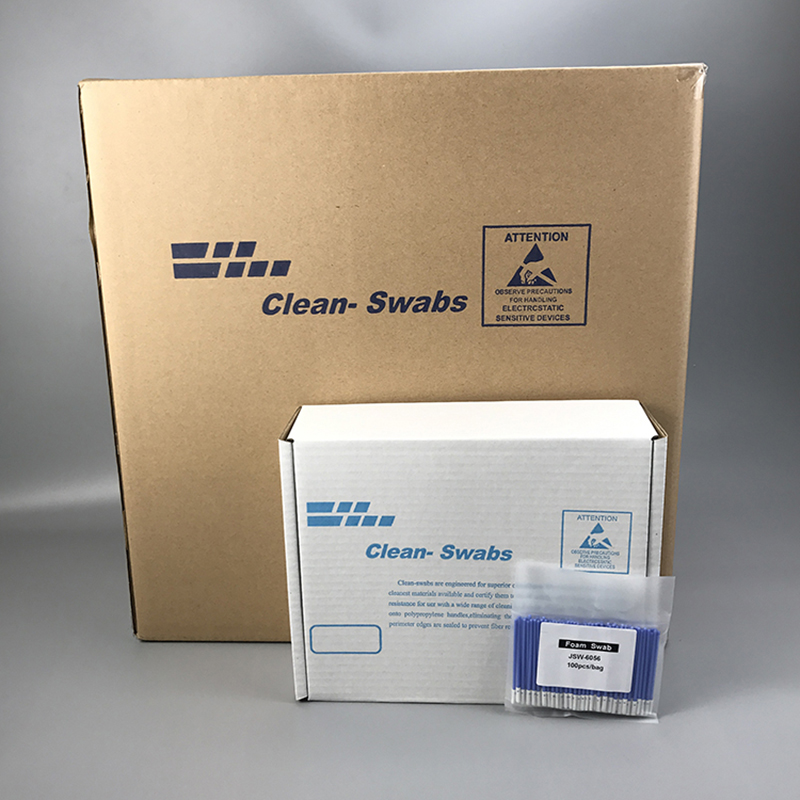

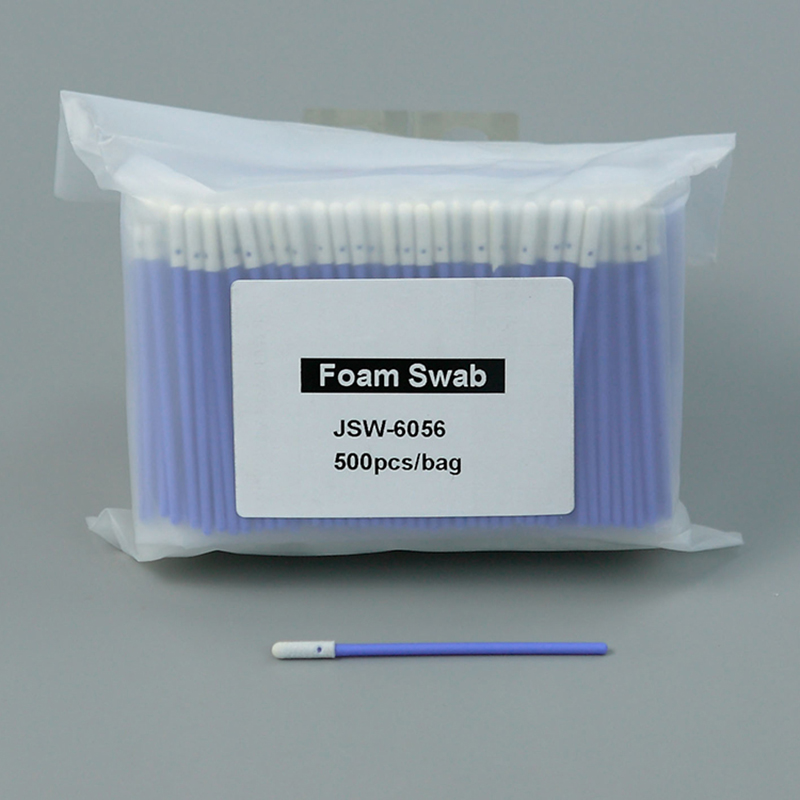

Packing:

500pcs/bag, 100bags/ctn

OEM Service:

Available

About Us

Suzhou Jujie Electron Co., Ltd was founded in 2005 and is a high-tech enterprise specializing in the research and development, production, sales and service of cleanroom and ESD products. As a professional China Open-Cell Foam Tip Swabs Supplier and Open-Cell Foam Tip Swabs Factory, In 2018, suzhou Jujie Electron Co., Ltd fully invested in Jujie Ultra Clean Technology Shuyang Co., Ltd. to expand cleanroom and ESD products production line. The plant area is 33000m², including 8000m² lint free workshop and cleanrooms are built according to ISO Class 5, Class 6 standards and pass the NEBB certification. We increase new 48 automatic weaving, washing, shaping production lines, equipped with laser cutting machine imported from Japan, ultrasonic cutting machine and other automatic production equipment imported from Germany, United States, South Korea infrared spectrometer, liquid particle counter and other high-end detection equipment, production capacity increased by 10 times.

Honor

  • Patents 4
  • Patents 3
  • Patents 2
  • Patents 1
  • Test Report 3
  • Test Report 2
  • Test Report 1
  • Qualification 4
  • Qualification 3
  • Qualification 2
  • Qualification 1

News

Industry Knowledge Extension

Suzhou Jujie Electron Co., Ltd.: Open-Cell Foam Tip Swabs Product Recommendation

Since its establishment in 2005, Suzhou Jujie Electron Co., Ltd. has been committed to providing excellent cleanroom and anti-static products. We have introduced advanced fully automatic production lines and high-end testing equipment to ensure that product quality reaches the industry-leading level. In 2018, our wholly-owned investment in Jujie Super Clean Technology Shuyang Co., Ltd. has greatly increased our production capacity. Our products have been exported to 83 countries and regions around the world, and we have established long-term cooperative relationships with more than 30 Fortune 500 companies.

High-quality open cell foam swabs-the preferred tool for precision cleaning
In environments that require high cleanliness and precision cleaning, the open cell foam swabs launched by Suzhou Jujie Electron Co., Ltd. are your ideal choice. This swab is designed to remove surface contaminants in hard-to-reach micro areas and has excellent particle capture and retention capabilities.

Product Features:

Efficient cleaning performance
The open cell foam swab is equipped with a medium handle and a flexible foam head, which is designed to handle hard-to-reach micro areas. Its foam head can effectively capture and retain contaminants, and is particularly suitable for removing flux, tape residue, excess dust and engine oil contaminants. The swab will not leave dust and lint during use, ensuring perfect surface cleaning.

Non-contamination design
Our swabs use thermal bonding technology between the foam and the handle without using any contaminating adhesives or coatings. This design ensures that the swabs are cleaned and packaged in a Class 100 cleanroom environment, and the foam particles and ions are extremely low, ensuring that there will be no contamination when used in a high-cleanliness environment.

Excellent chemical compatibility
The open-cell foam head swab has good compatibility with a variety of solvents including acetone. It has excellent absorbency and solvent retention capabilities, making the swab effectively resistant to corrosion during the cleaning process, quickly adsorbing contaminants to the swab head. This feature makes it ideal for cleaning tasks that require high solvent compatibility and corrosion resistance.

Adapt to a variety of applications

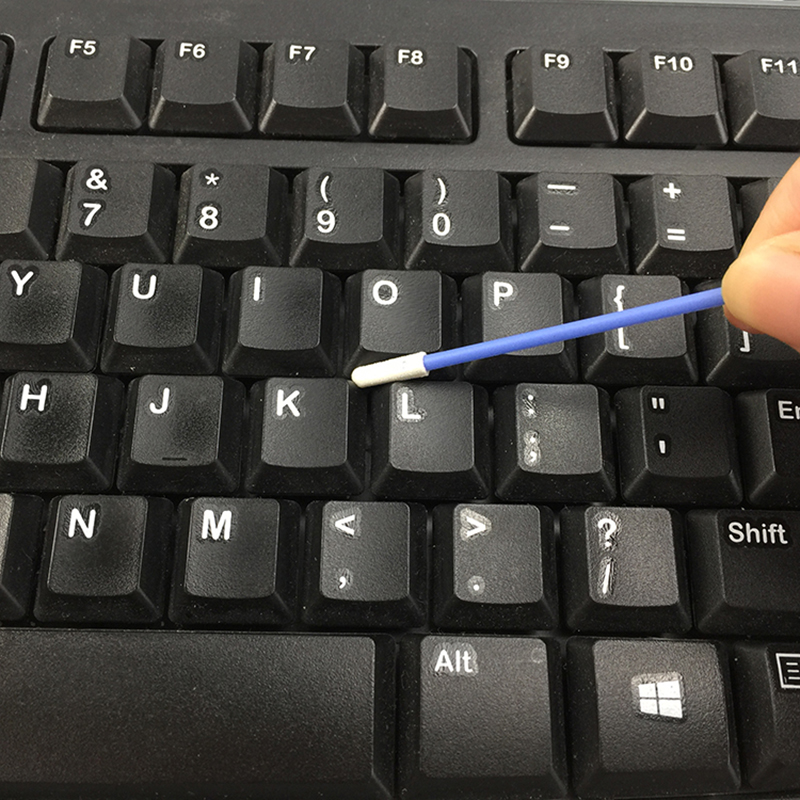

This swab is particularly suitable for cleaning tiny places, such as small gaps and complex surfaces. Whether in precision manufacturing, electronic product cleaning or other places that require a high degree of cleanliness, the open-cell foam head swab can provide stable and efficient cleaning support.

Application Fields
Open-cell foam head swabs are widely used in clean rooms, laboratories, electronic product manufacturing, optical instrument maintenance and other fields. It can effectively remove pollutants on various surfaces and maintain the efficient operation and long-term use of equipment and products.
